Diese 86 Wireless Touch Light Switch 433MHz Remote Transmitter, AC 110V~250V 10A Relay Receiver Interruptor for home improvement
Price range: $13.45 through $63.63
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
3-5 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
3-5 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview

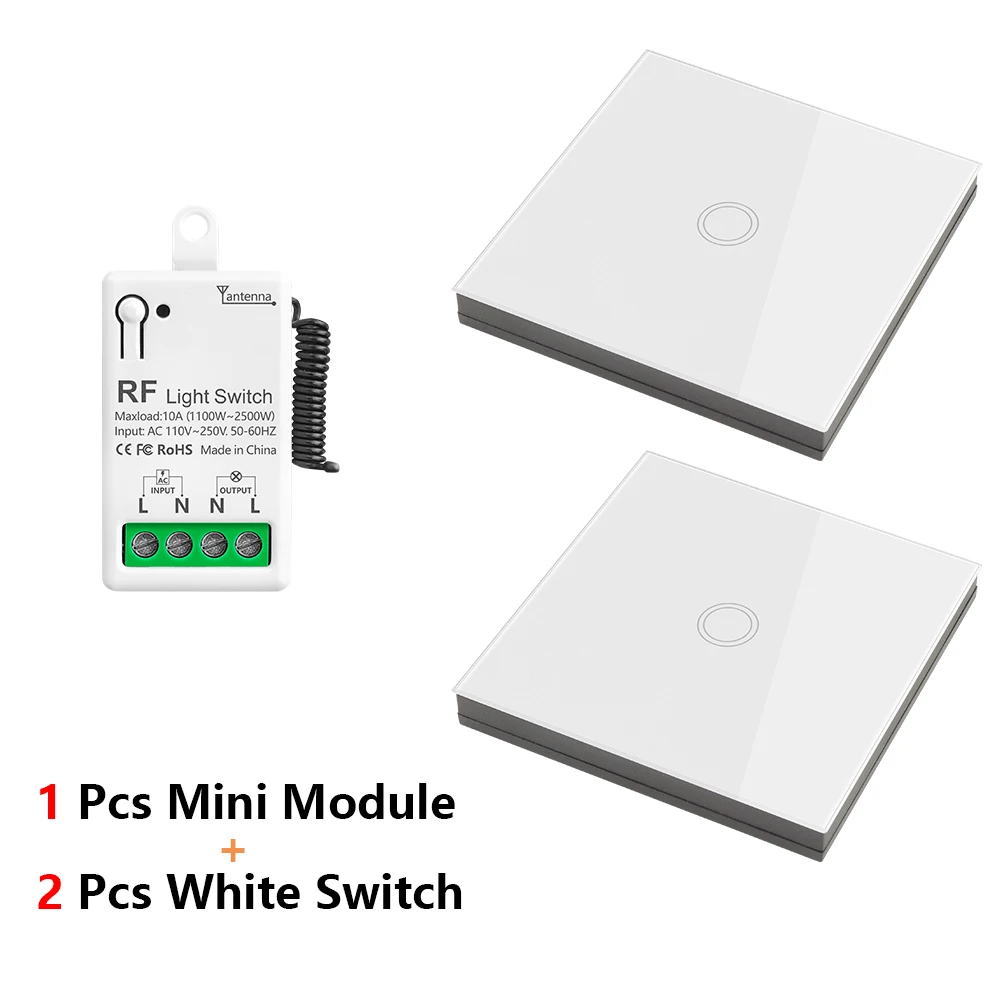

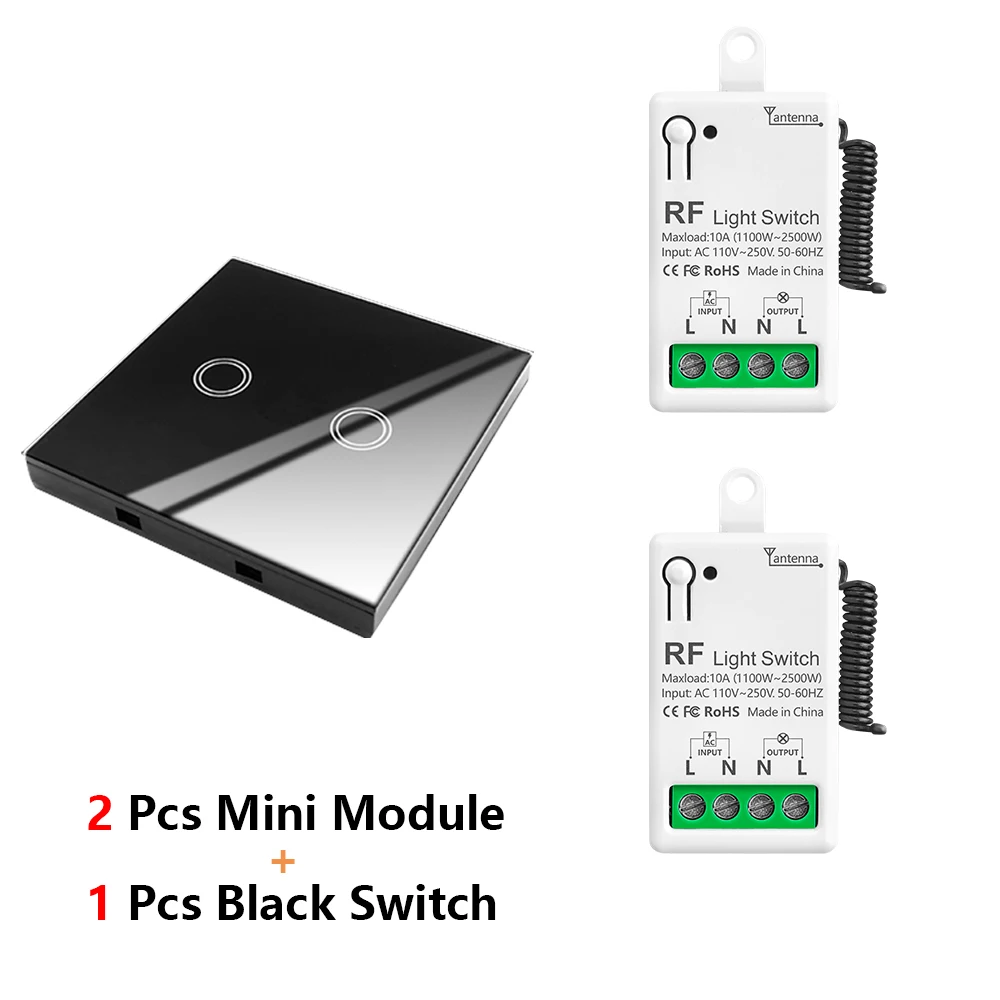

| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Processor
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Display
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
RAM
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Storage
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Video Card
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Connectivity
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Features
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Battery
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
General
| Color | 1 Switch–3gang, 1 Switch–2gang, 1 Switch–2gang B, 1 Switch–1gang B, 1 Switch–3gang B, 2Receiver 2Switch, 2Receiver 1Switch, 3Receiver 2Switch, 3Receiver 1Switch, 3Receiver 2Switch 1, 3Receiver 1Switch 1, 1 Switch–1gang, Only 1 Receiver, 1Receiver 2Switch, 1Receiver 1Switch, 1Receiver 2Switch 1, 1Receiver 1Switch 1, 2Receiver 2Switch 1, 2Receiver 1Switch 1 |
|---|
Description
SPECIFICATIONS
Application 2: water heaters
Application scenario: Home, Farm, Factory, Office, Supermarkets and so on
Application1: Light, Bulb, LED,Lamps, Fan, Door, Gate and other
Brand Name: Diese
Certification: RoHS,CE,CCC,ce,ROHS
Choice: yes
Code: Learning Code EV1527
Connection Method: Wireless Touch Switch
Current: 10A
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: RF 433 mhz /touch on off switch /start stop buttons
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Plastic
Max Current: 10A
Max Load: 2000W
Model Number: 2201F Wireless smart home control Switch Lighting Controller Switch
Origin: Mainland China
Receiver Size: 47*28*22mm/1.85*1.1*0.87inch
Remote Distance: up to 50m (theoretical distance)
Switch Type: Touch On/Off Switch
Switch size: 86*86*13 mm
Voltage: AC 110V-250V
Warranty: 1 Year /Wireless Interrupter High quality
frequency: 433 mhz
semi_Choice: yes
switch type: touch on/off switch
If you have bulk purchase needs or other questions, please contact me in time.Thank you!
▶High-quality program, supports a wide range of voltages
The receiver supports inputAC voltage of 110V~250V,and the maximum current defined is10A. The high-power function can support you to use more product needs. ▶Multi-scene use

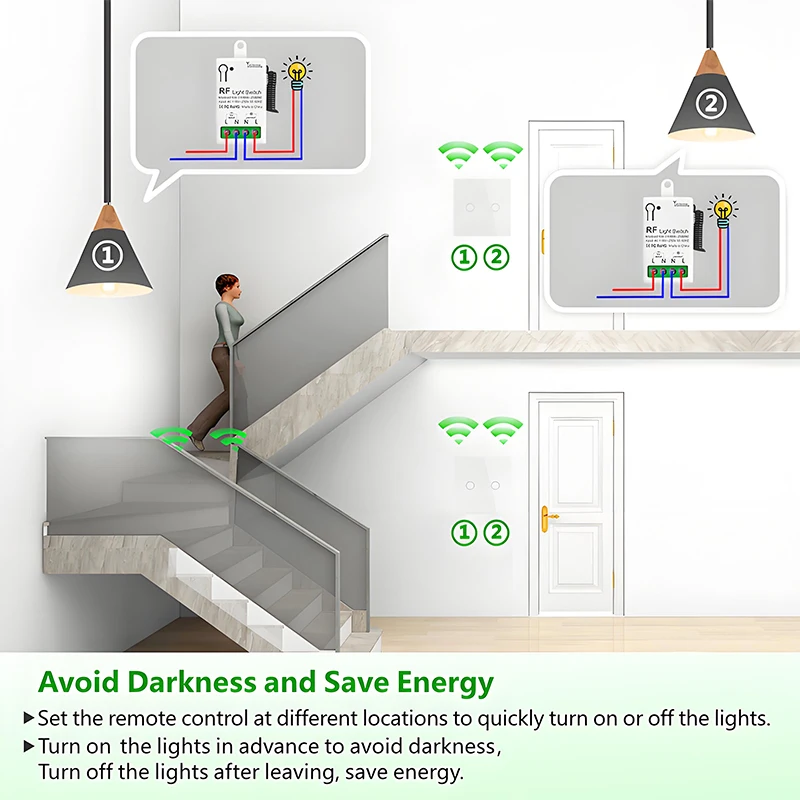

This product can be applied to a variety of scenarios. For example: the receiver can be connected to the lights in the stairs, kitchen, bedroom, and bathroom.Wide range of applications.
▶Small size, easy to install
The volume of the receiver is 47*28*23 mm, which is suitable for most mounting bases, and can be installed into the base portably without affecting the appearance of the decoration.

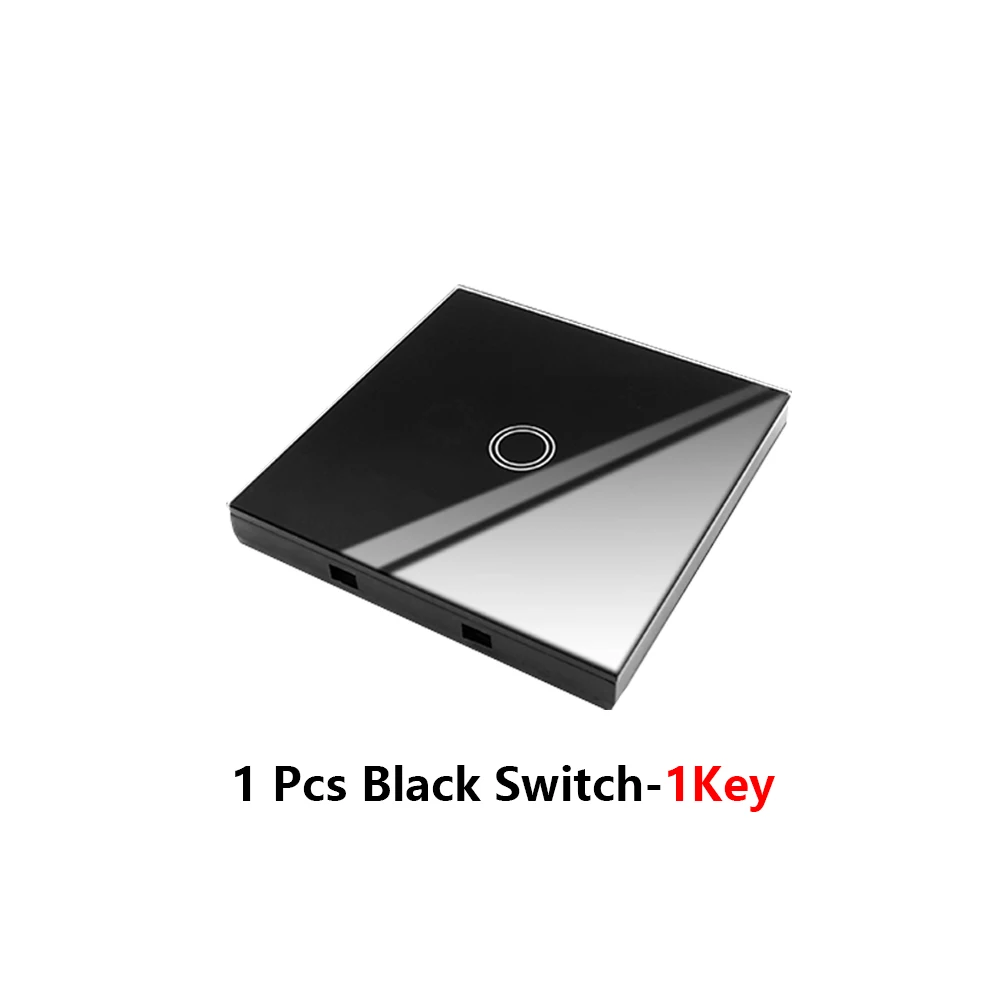

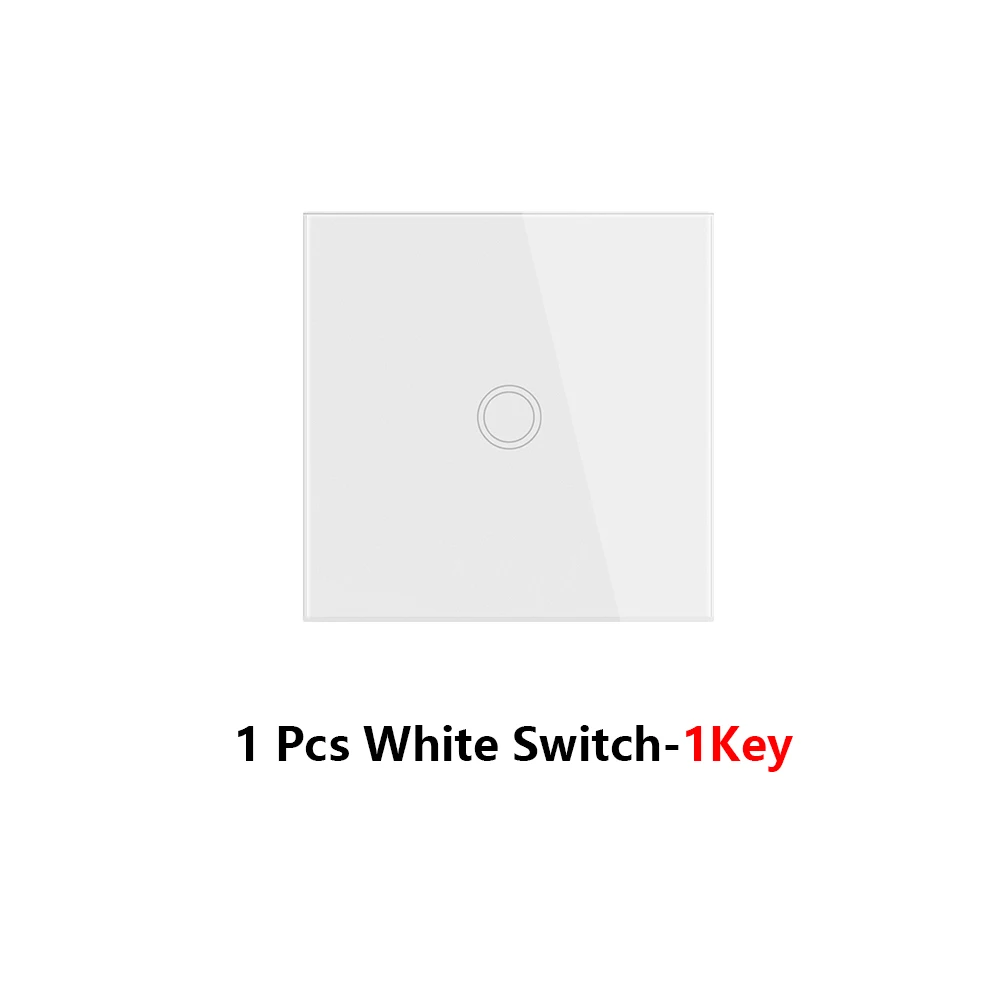

▶The transmitter is a touch switch
The switch can be turned on/off with the touch of a switch.And the switch has a short-term luminous function, which can absorb the light source and emit green light.The surface of the switch is glass, please pay attention when using it!
▶Long-distance control
The signal can pass through the wall, and the transmission distance in the open area can reach 50M.
▶Power-off memory function
The receiver has a power-off memory function: after the power-off, the power supply can be restored to the state of the last work.
▶Multi-remote control
1 receiver can program multiple transmitters, up to 10 pcs can be supported.
▶Multiple remote control controls
Can support other wall switches in the store (except for self-powered types) and 433mhz remote control control
▶2 programming modes
Momentary mode and Toggle mode.
▶Fast delivery
Delivery within 24 hours after payment, to ensure that the goods arrive in your hands quickly.
▶Relay Receiver Board Parameter
Working voltage : AC 110V~250V
Quiescent Current : <5MA
Max current : 10A
Max load: 2200W
RF frequency : 433MHz
Receiver size : 47*28*23mm
Working temperature : -30~+80 Celsius
Receiving Sensitivity : >97dbm
Amount of storage wall switches : 10 pieces
Support encoding : 1527 Learning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Remote operating mode : Momentary Mode / Toggle Mode

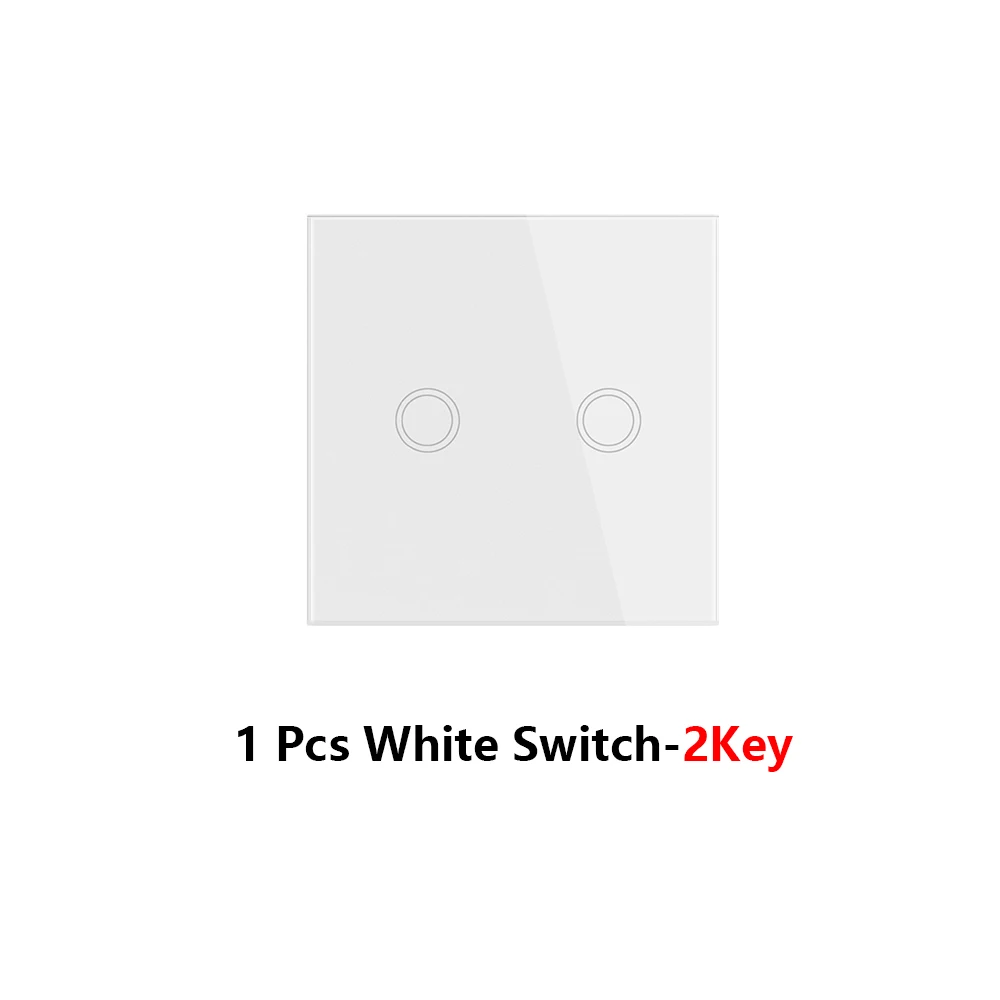

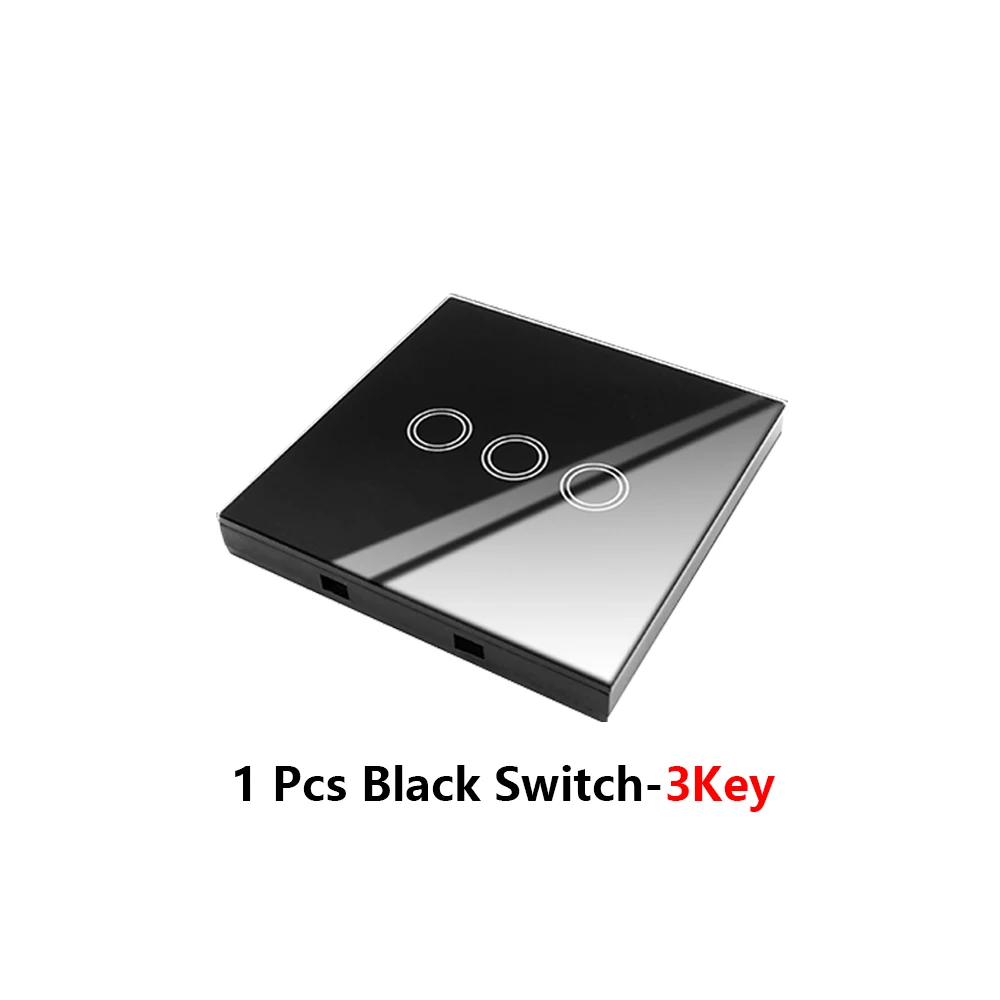

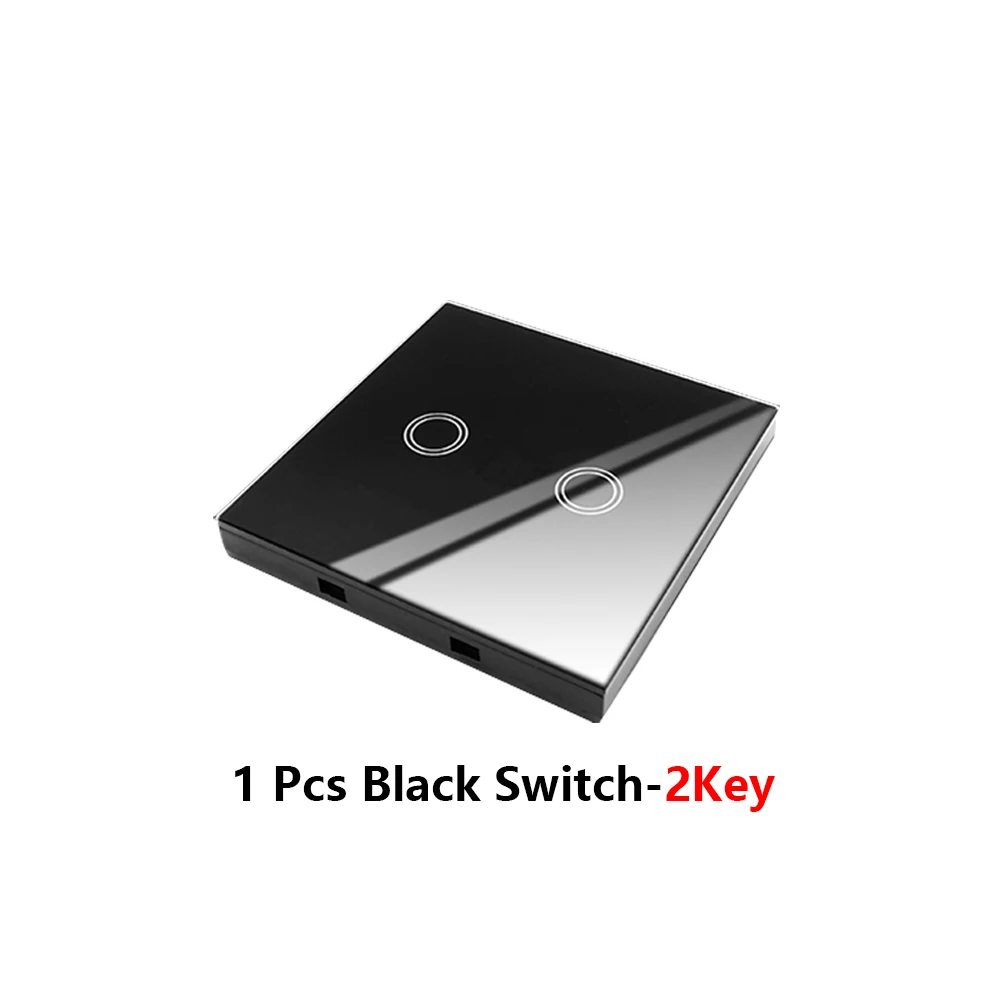

▶Wall panel Transmitter Parameter
Size: 86*86*13 mm
Battery: 1 Pcs 27A 12V battery( include)
Receiving Range: Up to 50 meters(theoretical distance)
Code: 1527 leanring
Material: PVC
The switch can be pasted on the refrigerator or iron products
Prompt: Before pairing, please clear the code first to avoid signal interference.
Clear data:
Press the learn button (on the receiver) 8 times. Existing data will be successfully deleted.
*Momentary Mode*
Description :
1. Press and hold one button, The device will turn ON .
2. Release the button, The device will turn OFF.
Set up:
Step1:Press the learning button on the receiver 4 times , Wait for 3 seconds;
Step2:Press one button on the remote 1 time , Wait for 3 seconds.Succeed.
*Toggle Mode*
Description :
1. Press one button 1 time,The device will turn ON .
2. Press the same button again,The device will turn OFF.
Set up:
Step1:Press the learning button on the receiver 2 times , Wait for 3 seconds.
Step2:Press one button on the remote 1 time , Wait for 3 seconds.Succeed.
Note
1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
2. After deleted the data, all the remote controls cannot work any more.
