Bifacial Solar Panel 100W 18V, Monocrystalline Solar Module for 12V Batteries, Photovoltaic, Solar Panel 12V for Motorhome
Original price was: $233.87.$207.89Current price is: $207.89.
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
3-5 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
3-5 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Processor
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Display
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
RAM
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Storage
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Video Card
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Connectivity
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Features
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Battery
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
General
| Color | 2Pcs 100W |
|---|---|
| Ships From | United States |
Description
SPECIFICATIONS
Brand Name: JINGYANGPV
Certification: CE,FCC,RoHS,UL,weee
Flexible Solar Panel: No
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 110
Model Number: Cnmypv100(32)M166
Module Efficien: 24%
Nominal Capacity: 100
Number of Cells: 32
Number of Panels: 2
Origin: Mainland China
Rigid Solar Panel: Yes
Size: 100Cm*53Cm*3Cm
Type: Solar Panel
is_customized: Yes

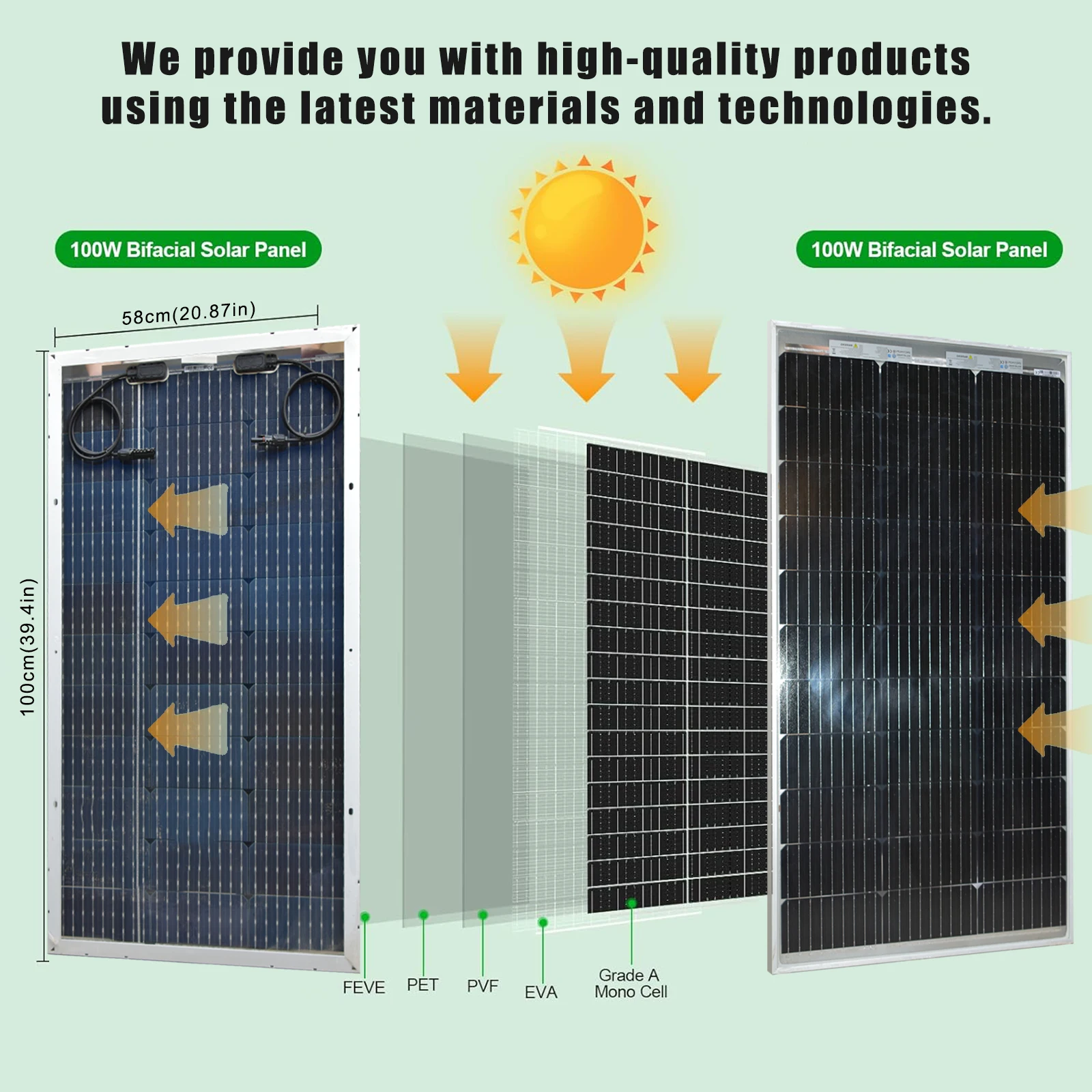

Advantages of jingyang tempered solar panels:
Multi-layer sheet package, sturdy and durable, good heat dissipation.No hot spots will appear.
The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

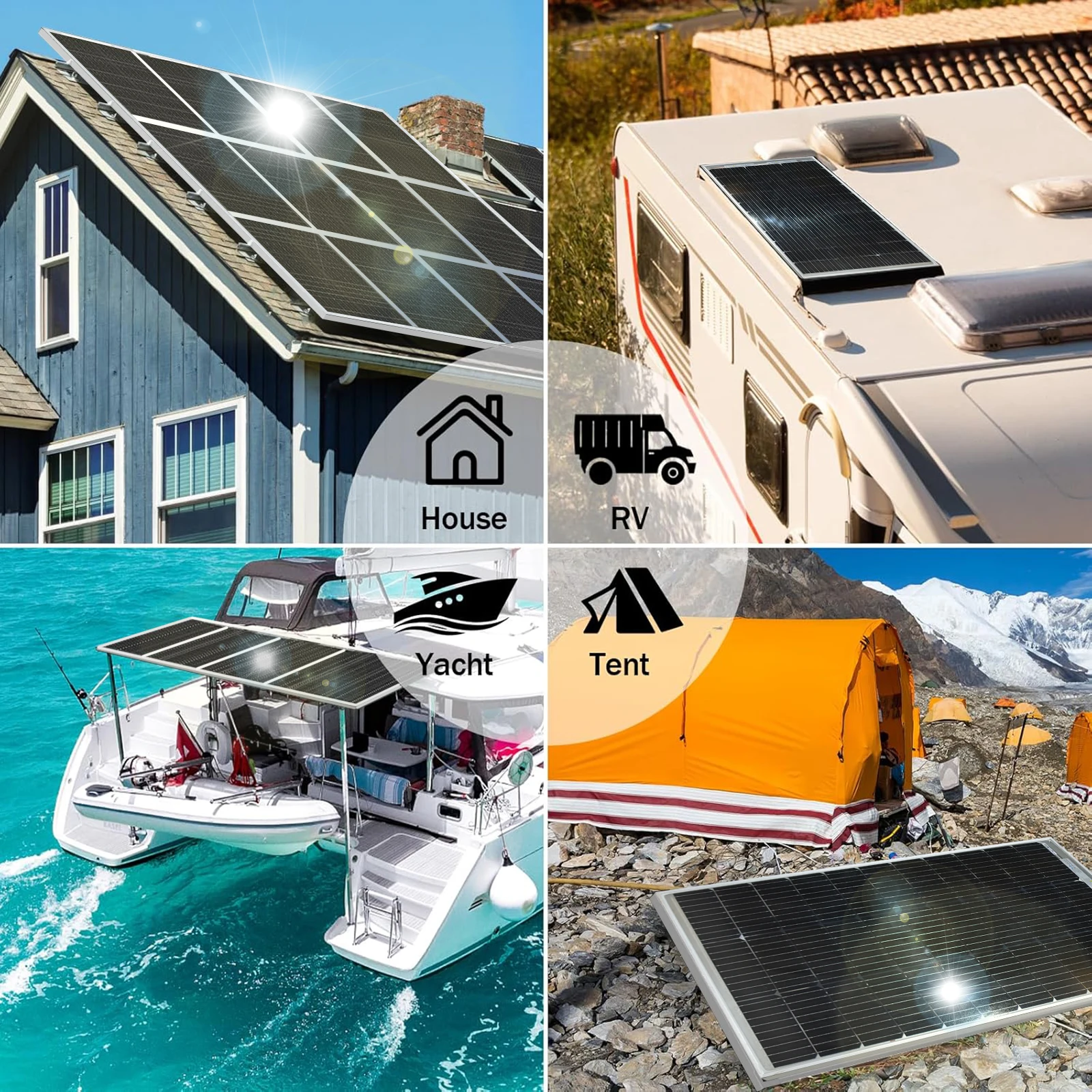

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels.It is the best choice for motorhomes and families.It has a very high cost performance and is the best choice for home energy investment.
Ürün açıklaması:
Yüzeyi temperli camdır, su geçirmez, kar geçirmez, küçük doluya dayanıklıdır.
Diodes are pre-installed in junction box and a pair of 24-inch cables with connectors come with the panel automatically
The back has 8 drill holes that can be quickly installed.

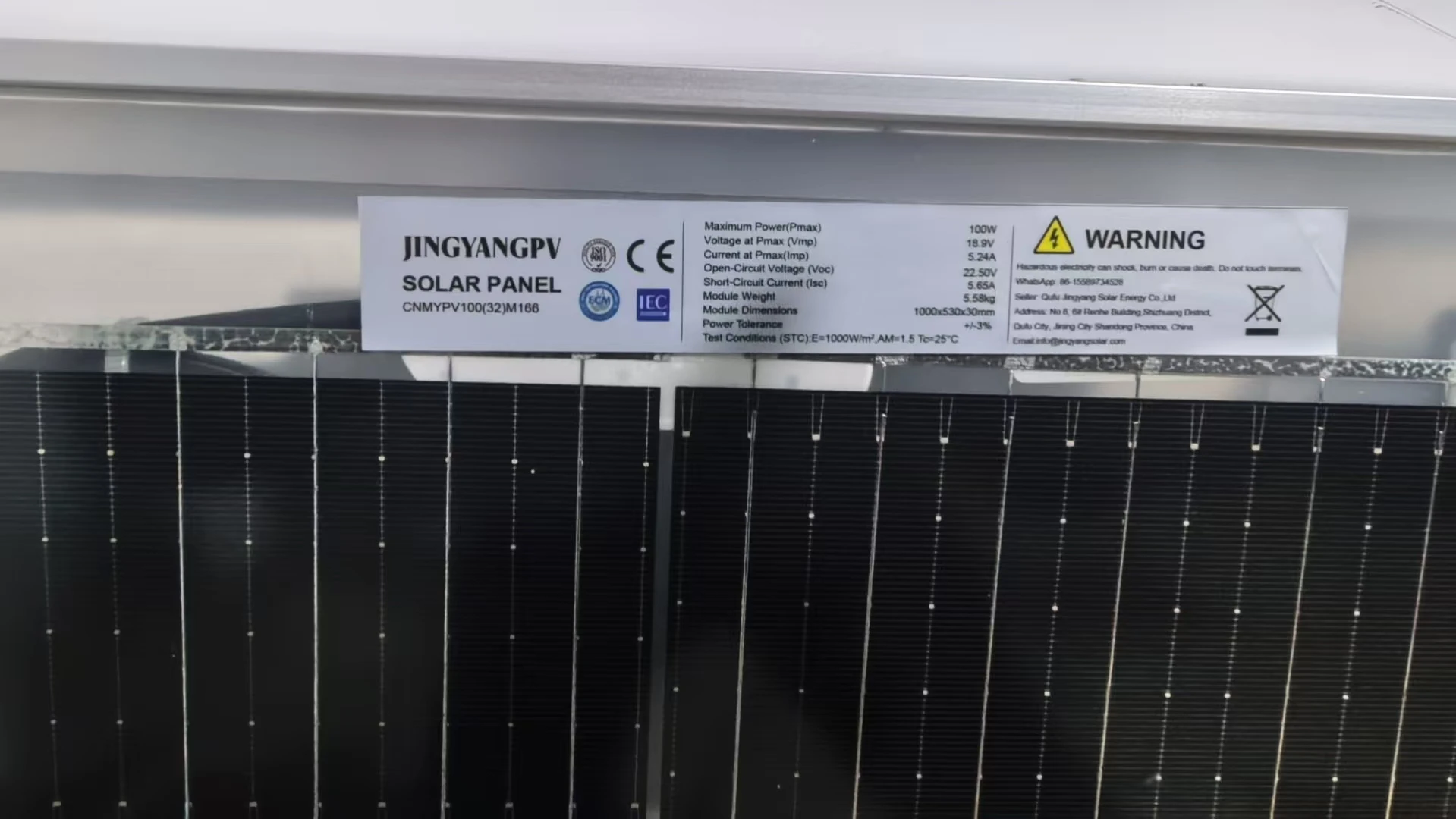

Model: cnmypv100(32)m166
Material: monocrystalline silicon
Maximum power (pmax): 100w
Maximum power voltage (vmp): 18.9v
Maximum power current (imp): 5.24a
Open circuit voltage (voc): 22.5v
Short-circuit current (isc): 5.65a
Solar cell: newly 166mm*166mm monocrystalline
Nominal operating cell temperature(noct):-45 to 80℃
Maximum system voltage: dc1000v
Maximum series fuse: 10a

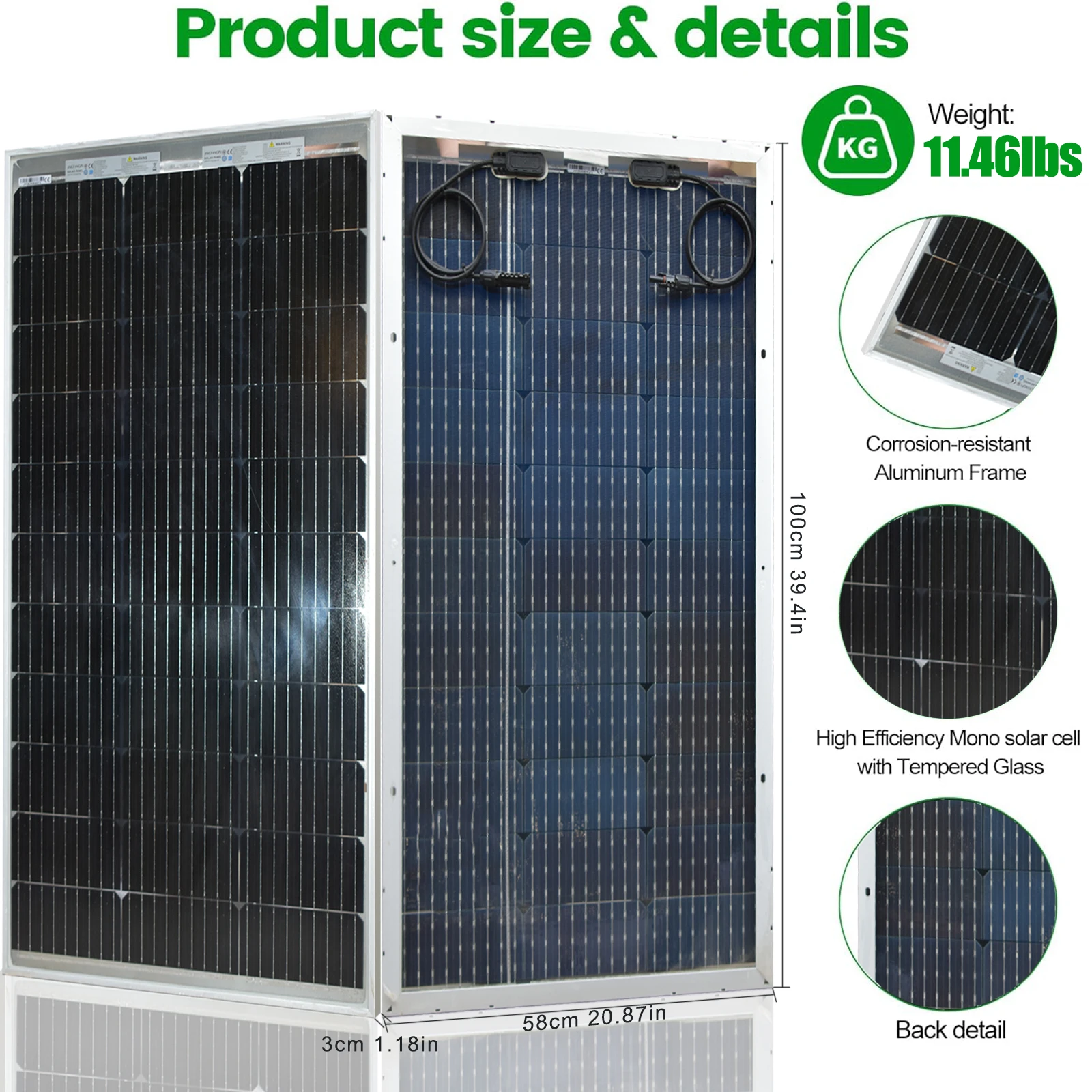

Dimension: 1000mm*530mm*30mm
Power tolerance: +/-3%
Package weight: 5.58kg
(the above data is based on the laboratory standard test environment)
5 years warranty, 25 years lifetime
Minor reduction in efficiency under partial load conditions at 25°c: at 100 w/m², 95% (+/-5%) of the stc efficiency (1000 w/m²) is achieved.
We reserve the right to modify the specifications of the data, and there may be a deviation of approximately ±5% in all specifications. please take this point into consideration.
