4K USB 3.0 Video Capture Card USB 2.0 HDMI-compatible Game Grabber Box for PS4 DVD Camera PC Recording Video Live Streaming
Price range: $13.33 through $21.65
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
3-5 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
3-5 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Processor
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Display
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
RAM
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Storage
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Video Card
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Connectivity
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Features
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Battery
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
General
| Color | USB 3.0 Black, USB 2.0 Black |
|---|
Description
SPECIFICATIONS
Application: TV,MOBILE PHONE,PS4/3,xbox,Switch,Dslr,PC,Storage Device,Camera,Display
Brand Name: NONE
Certification: CE
Choice: yes
Feature 1: Video & TV Tuner Cards
Feature 2: HDMI-Compatible Capture Card
Feature 3: USB3.0 HDMI-Compatible Video Grabber
Feature 4: HDMI-Compatible Video Caputer Card
Feature 5: 4K Video Capture Card
Feature 6: USB Video Capture Card
Feature 7: USB 2.0 Mini Video Capture Card
Feature 8: For Live Stream
High-concerned chemical: None
Input: Other
Origin: Mainland China
Output: Other
Type: Video Capture Card
Product Introduction:
Brand new and high quality,buy with confidence
Selling Points:Real USB 3.0 Fast Speed, 1080p 60fps YUY2 Full HD,Mini Portable,Plug and Play
This new mini video capture card can capture both HDMI-compatible video and HDMI-compatible audio, sending audio and video
signals to computer for preview and storage,also can push to online live streaming platforms to share
with your fans.
Suitable for high definition video acquisition, teaching recording, medical imaging, study files recording,
game recording,live streaming,etc.
Features:
Support input resolution up to 4K@30Hz;
* Support output resolution up to 1080P@60Hz YUY2;
* Support 24/30/36bit deep color;
* Support AWG26 HDMI-compatible standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, Wirecast,Vmix,Potplayer,etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Without external power supply, compact and portable
* Operating Temperature range : -10 to +55℃
* Size: mini portable size
Computer hardware configuration requirements:
CPU: PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
Run memory: 4G RAM
Package Content:

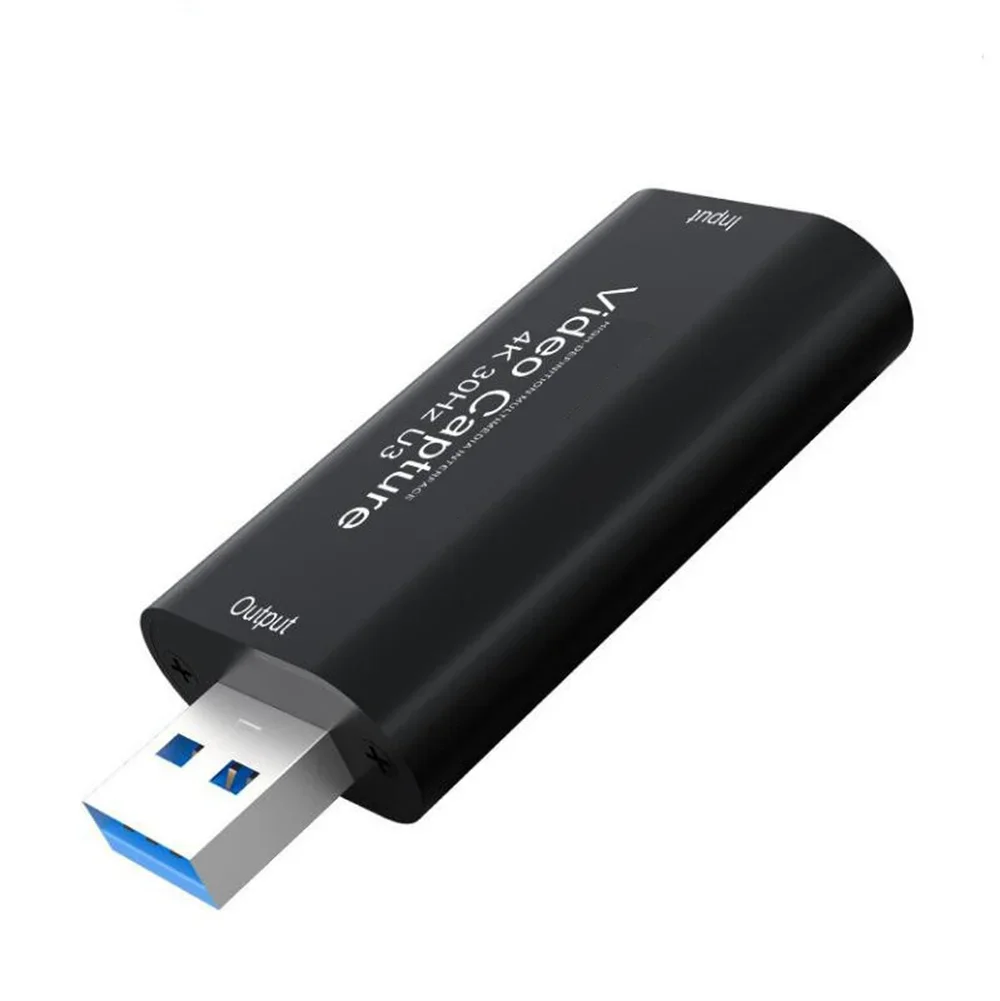

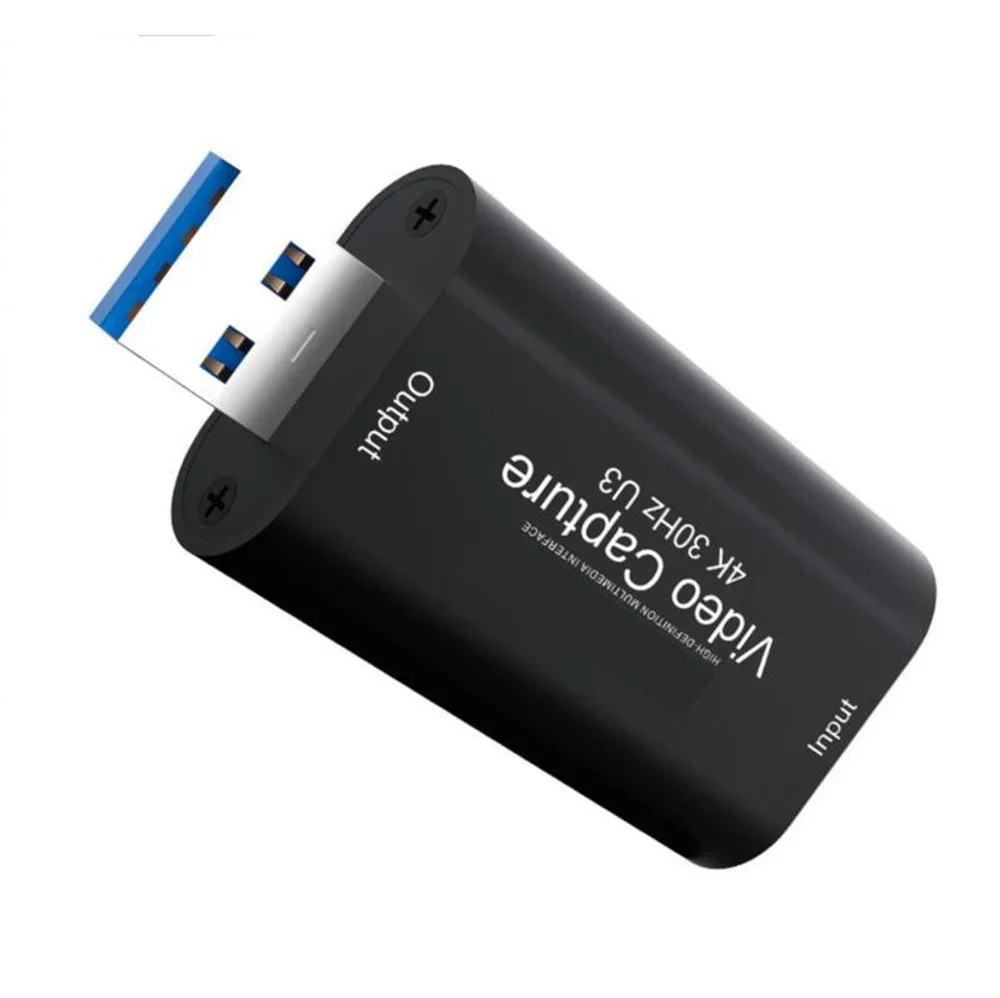

1. Mini U3 Video capture card x1
2. User Manual x1
Description:
Operation:

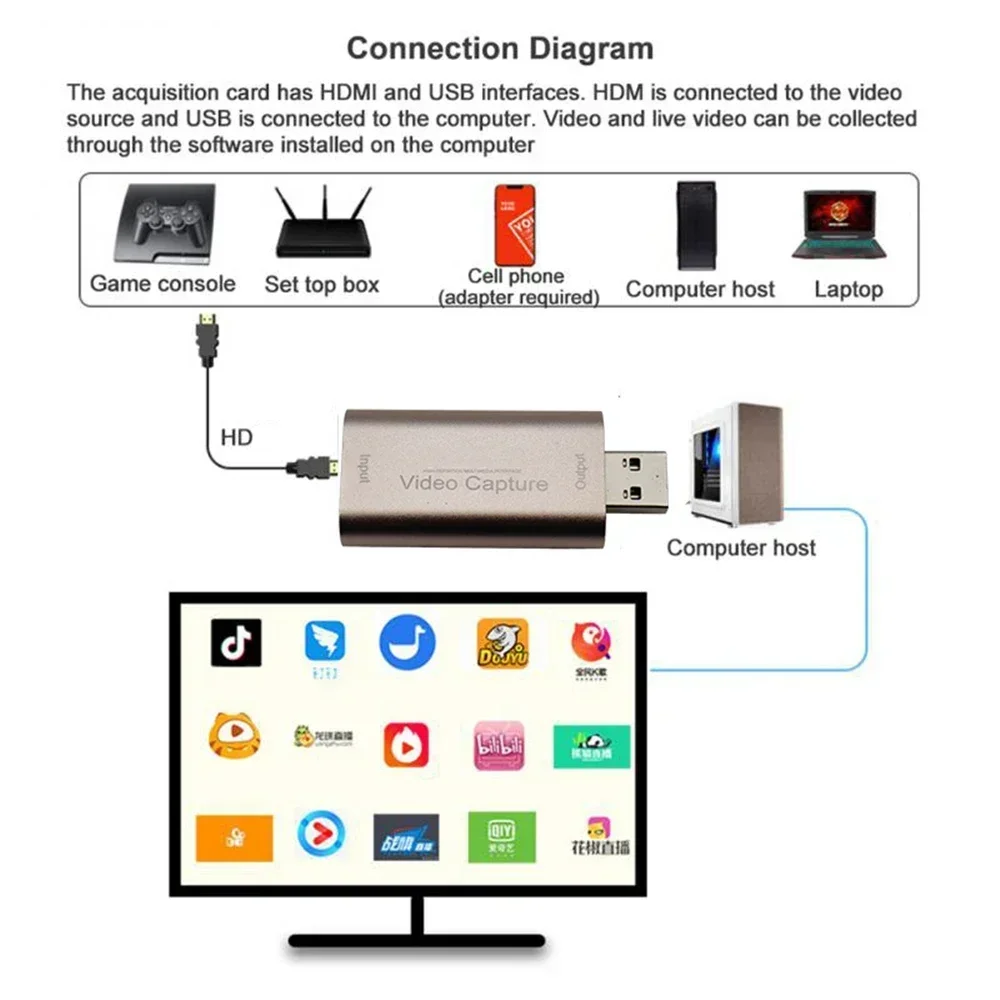

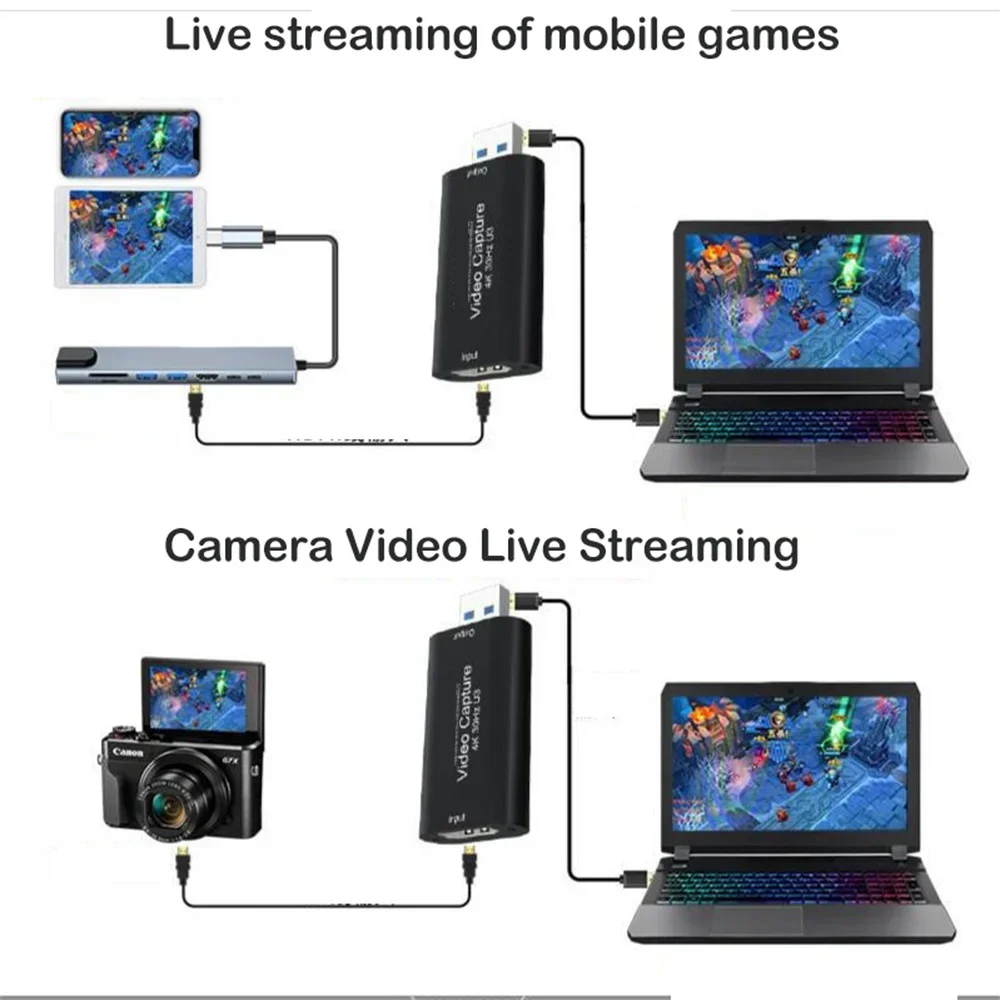

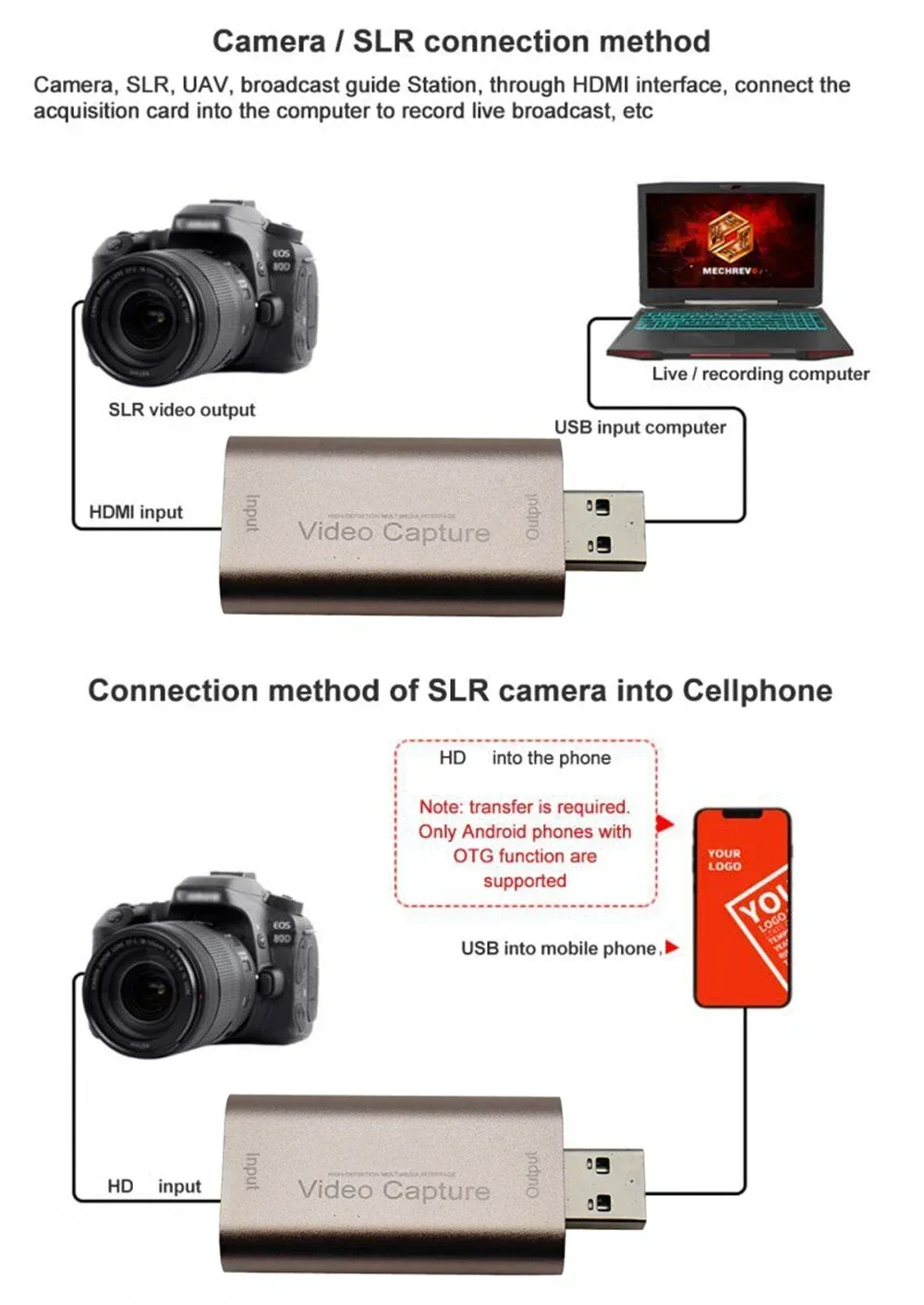

1: use an HDMI-compatible line to connect the UHD signal source of USB acquisition card and HDMI-compatible input port.
2. Insert the USB card of the USB acquisition card into the USB port of the computer.

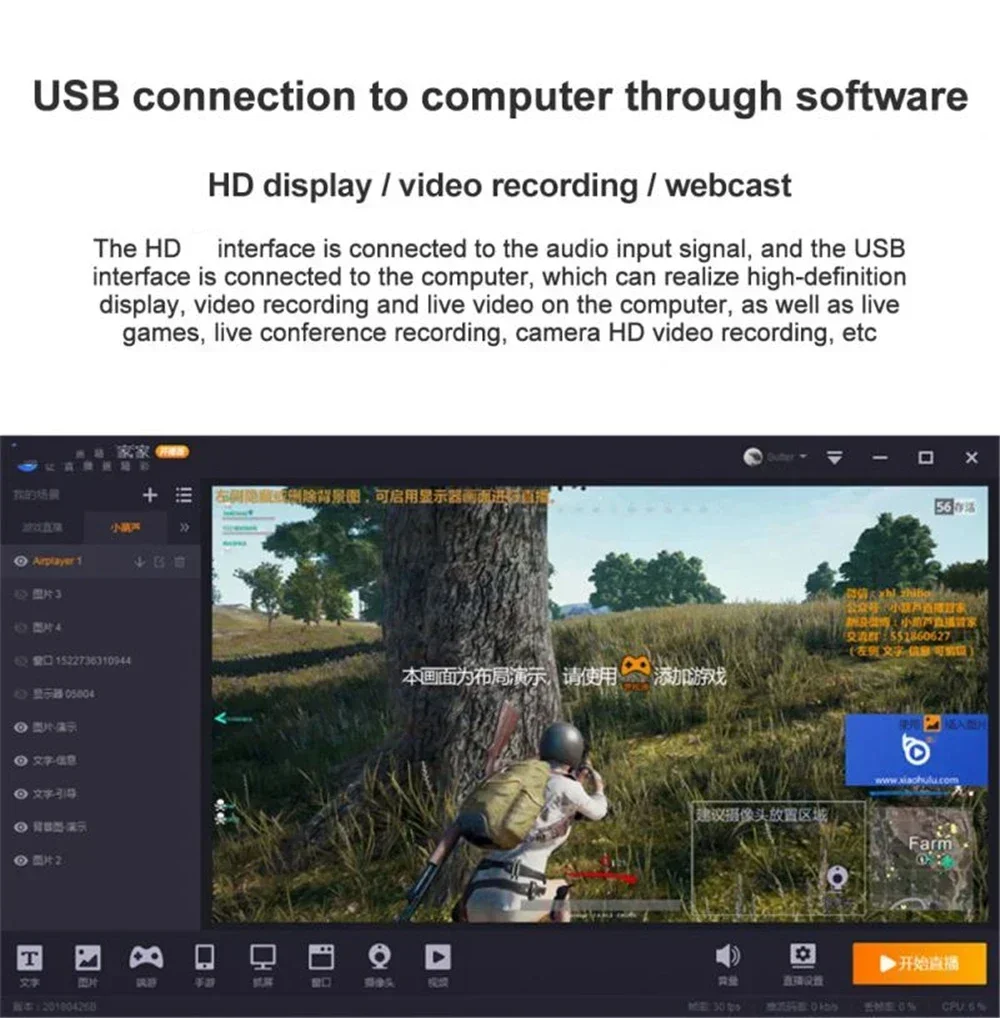

3: Collection operation steps (OBS): open the software-add a new source-select "video capture device"-set the screen size-select "studio mode" (double window)-click "start recording"
Hardware configuration requirements of computer:
CPU: PCi5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM Note:
Due to the different display and light effects, the actual color of the project may be slightly different. Please refer to the user's manual for details.
Product specifications:
HDMI-compatible resolution ……………………………………. maximum input can support 4K/1080P.
Input video format …………………………………………………… 8/10/12 bit color depth
Video output mode ……………………………………………………… YUV, JPEG
The maximum output resolution of video output resolution …………………………………….. is 1080P.
Support audio format ……………………………………………………………… L-PCM
Input cable length ………………………….. ≤ 15m, AWG26 HDMI-compatible standard cable
The maximum working current ……………………………………………………….. is 0.4A/5VDC.
Operating temperature range ……………………………………………………. (-10 to 55℃)
………………………………….. size 64x28x13 (mm)/2.52×1.1×0.51 inch
The weight of …………………………………………………………………………….. is 21.4g
Specifications:
Product description:
This USB 2.0/3.0 acquisition card can collect both HDMI-compatible video and HDMI-compatible audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Product features:
* Support the maximum input resolution of 4K/1080P;
* Support 8/10/12 bit color depth;

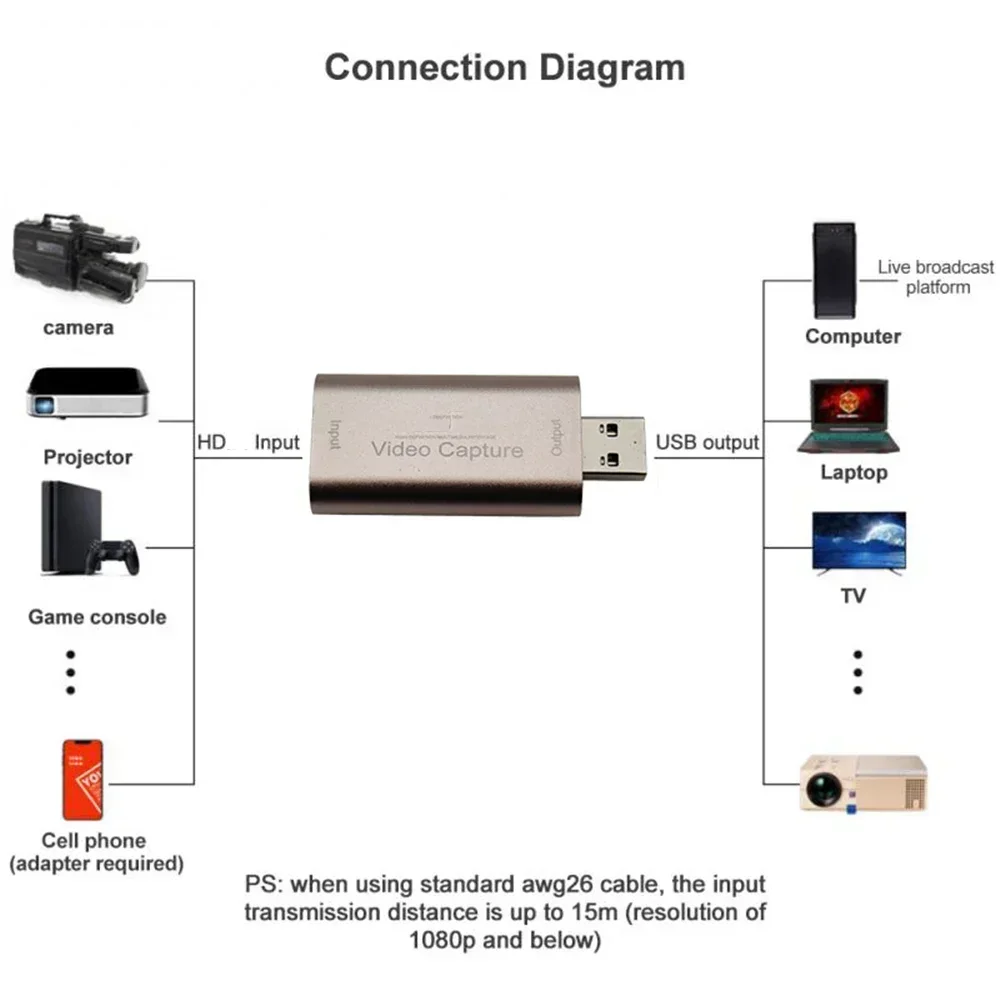

* Support the input transmission distance of 15m (1080P and below) when using standard AWG26 cable;
* Support most acquisition software, such as VLC, OBS, Amcap,switch,Xbox One etc.
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* comply with USB audio UAC specification;
* No need for external power supply, small size and easy to carry.
Package Included:
1*Video Capture
1* instructions
